Comprehensive, Robust, Flexible, Modular, Floor box-compatible

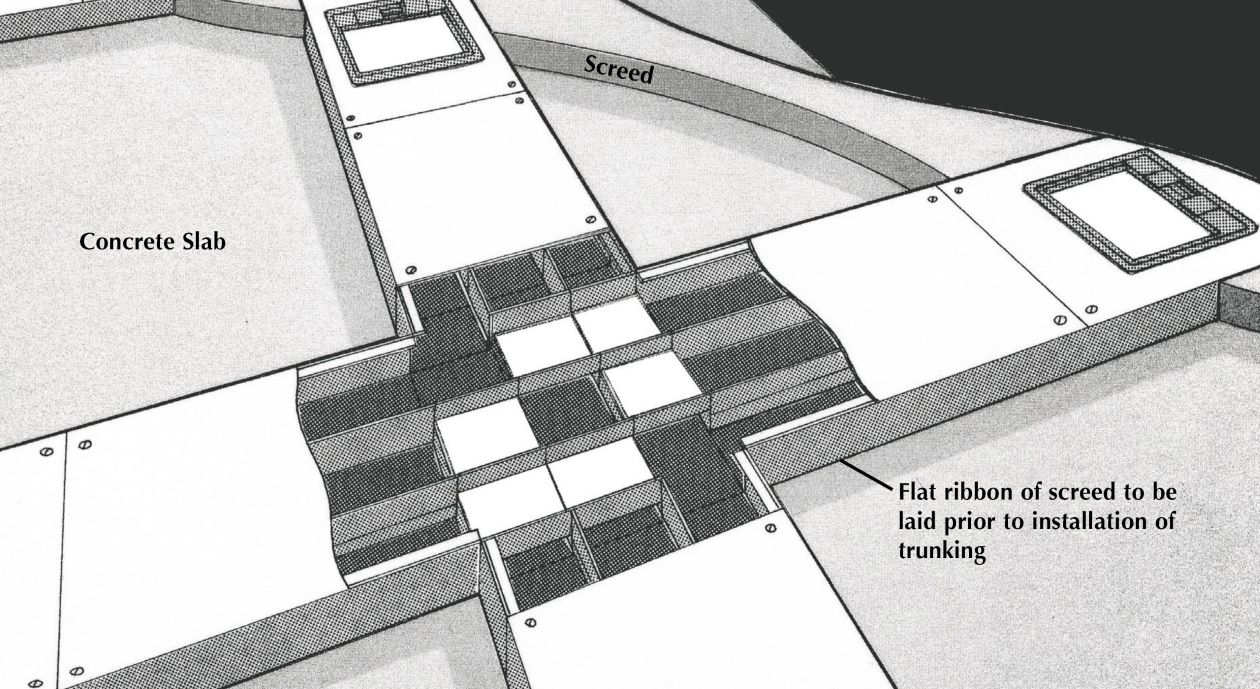

Cableduct floor trunking is available as a flush floor option. Designed for use in screed floors with the access lid flush with the top of the floor screed. This option provides the best flexibility for moving outlet points and rewiring without hassle in the future.
Contact Us
Product Details
Stocked sizes are shown below. For bespoke sizes speak to our team for more information.
| Trunking type (ref. 130): (2m lengths) | Width x Depth (mm) (including 2x 1.5mm thickness of galvanised steel) | No. of Compartments | Floor box integration |
| FF4 | 153x25 | 2 | 2000 and 500 - via spigot (boot) |
| FF4 | 153x40 | 2 | 2000 and 500 - via spigot (boot) |
| FF12 | 333x55 | 3 | 2000 and 500 - within trunking run |
| FF13 | 333x65 | 3 | 2000 and 500 - within trunking run |
| FF14 (recessed lid - 6mm) | 333x71 | 3 | 2000 and 500 - within trunking run |
| FF15 | 443x65 | 4 | 500 - within trunking run |
FF4-25
FF4-40
FF12
FF13
FF14-rec
FF15
Accessories
Browse our fully compatible accessories (width & depth are same as trunking type).
| Accessory type (ref.) | Flat bend (131) | Tee (132) | Cross (133) |
| FF4 | 251mm | 350mm | 350mm |
| FF4 | 251mm | 350mm | 350mm |
| FF12 | 500mm | 500mm | 500mm |
| FF13 | 500mm | 500mm | 500mm |
| FF14 (Recessed lid - 6mm) | 500mm | 500mm | 500mm |
| FF15 | 540mm | 644mm | 644mm |
| Accessory type (ref.) | Vertical bend (134) | 45 degree bend (144) | End cap (138) |
| FF4 | 25mm | 160mm | n/a |
| FF4 | 25mm | 160mm | n/a |
| FF12 | 55mm | 250mm | n/a |
| FF13 | 65mm | 250mm | n/a |
| FF14 (Recessed lid - 6mm) | 65mm | 250mm | n/a |

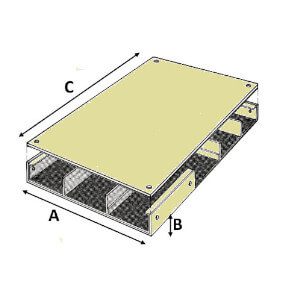

Flat bend (131)

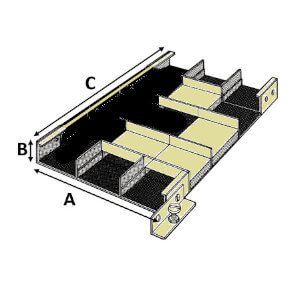

Tee (132)

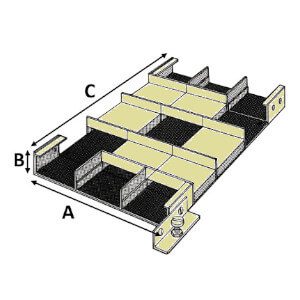

Cross (133)
Vertical (134)

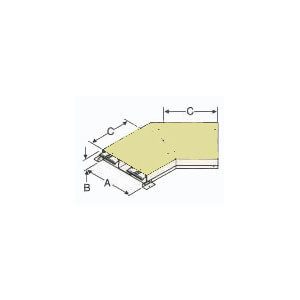

45 degree (144)

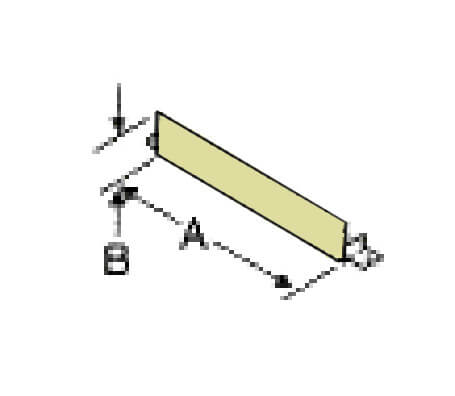

End cap (138)
Downloads
Click on the boxes below to access our extensive range of downloadable resources. From brochures and floor box specifications to installation guides and conformity data sheets, all our downloads are completely free to all Cableduct customers.
If you’ve got a particular question for the experts at Cableduct, it’s highly likely that you’re not the first person to ask this. Have a read of our frequently asked questions to see if you can find the answer to the information that you require.
Can't see the answer you're looking for?
Call 020 8683 1126Flush floor is level with the top of the screed and can contain floor boxes along the trunking run (usually 2000 Series floor boxes). Underfloor in-screed is buried in the screed.
The trunking acts as the base box of the floor box, you’re only putting a plug top and 6mm lid on the trunking. The cables run under the outlet plates.
A good start point is to see the relevant datasheet and installation guide and send us a “shopping list” of lengths/bends/end caps/tees that you want, with quantities.
You can install a floor box with underfloor trunking if the trunking is at least 55mm deep. The type of floor box will differ depending on the exact situation. Please ask our technical team for their advice
Skirting runs around the edge of the wall at floor level whereas dado does the same but at waist height. Options are available for square or chamfered top and bottom. Finish is galvanised steel, pre-painted white or stainless steel.
Our Trunking is supplied with enough fixings and accessories for standard installations. Projects can vary and so please discuss details of your project with our team. Fixings and installations information is available in Downloads/Trunking
