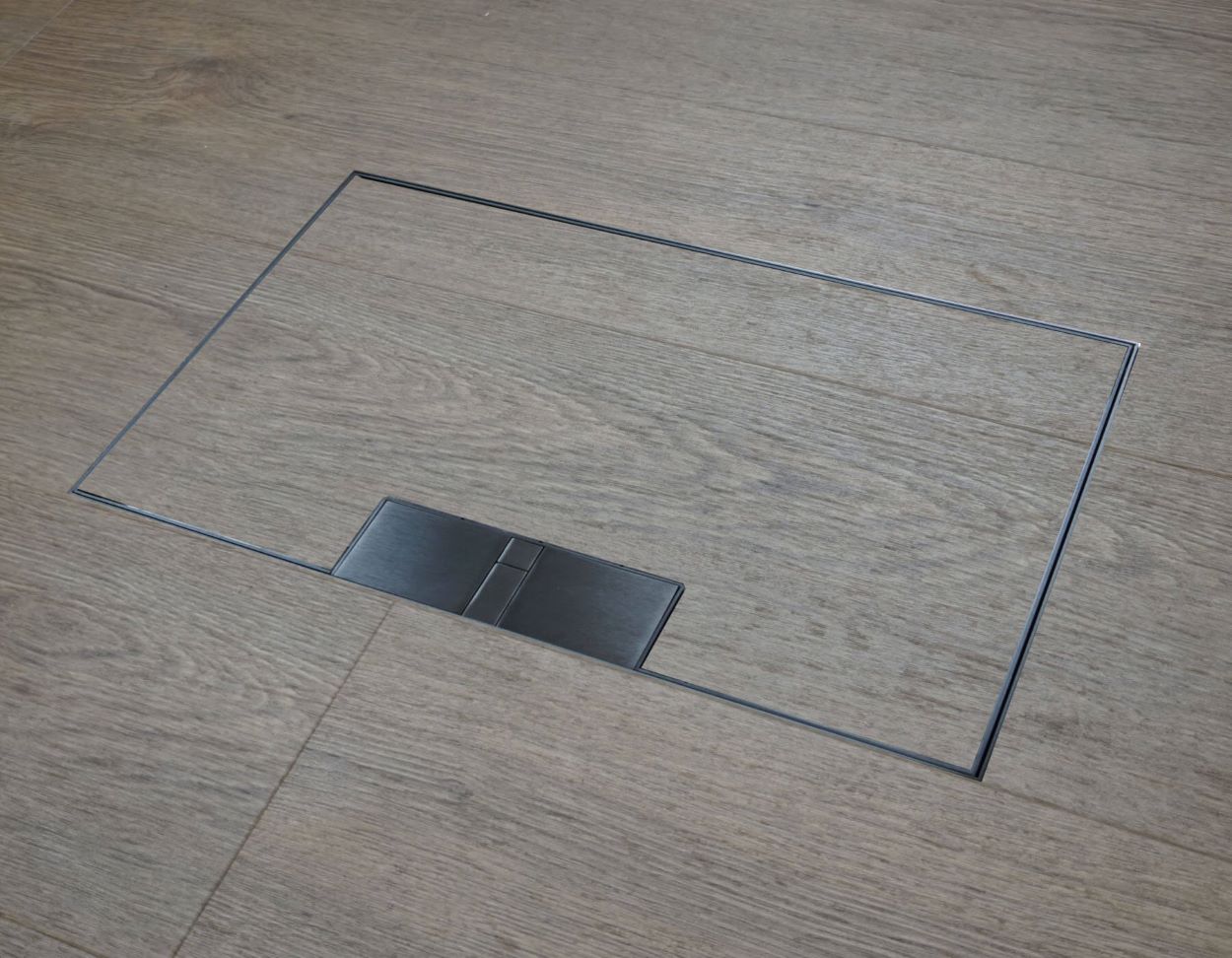

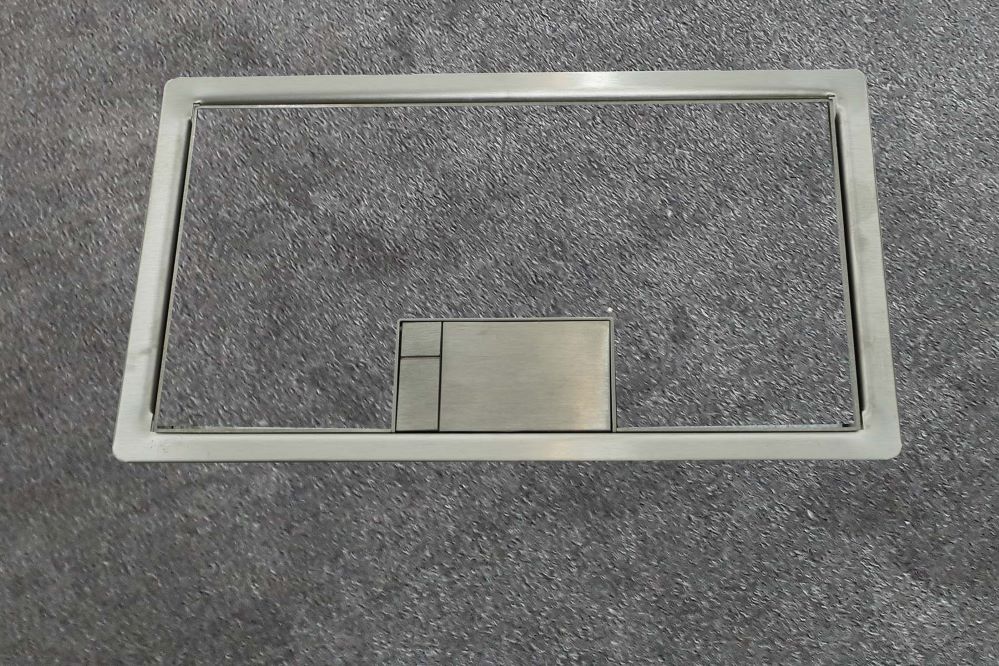

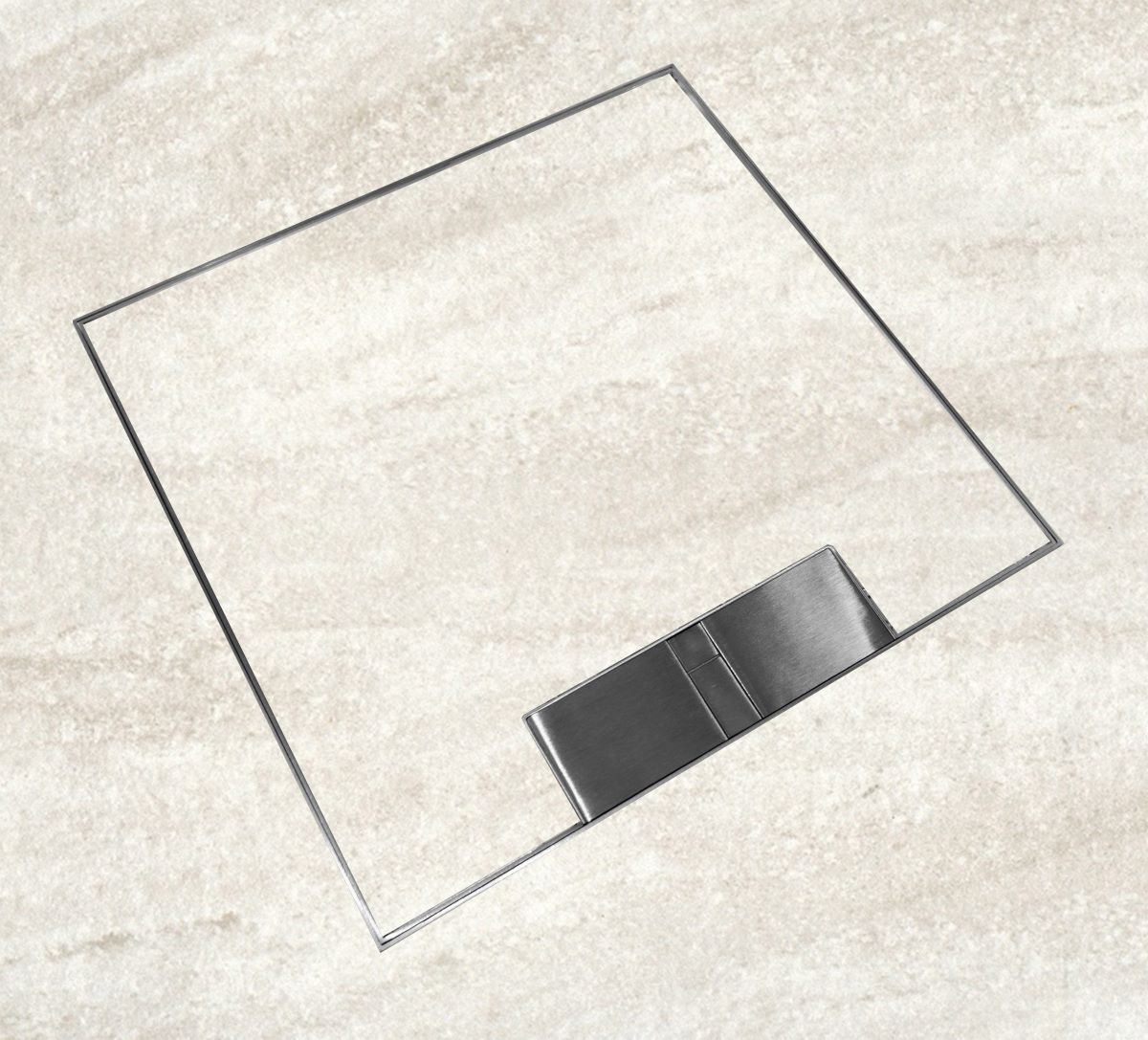

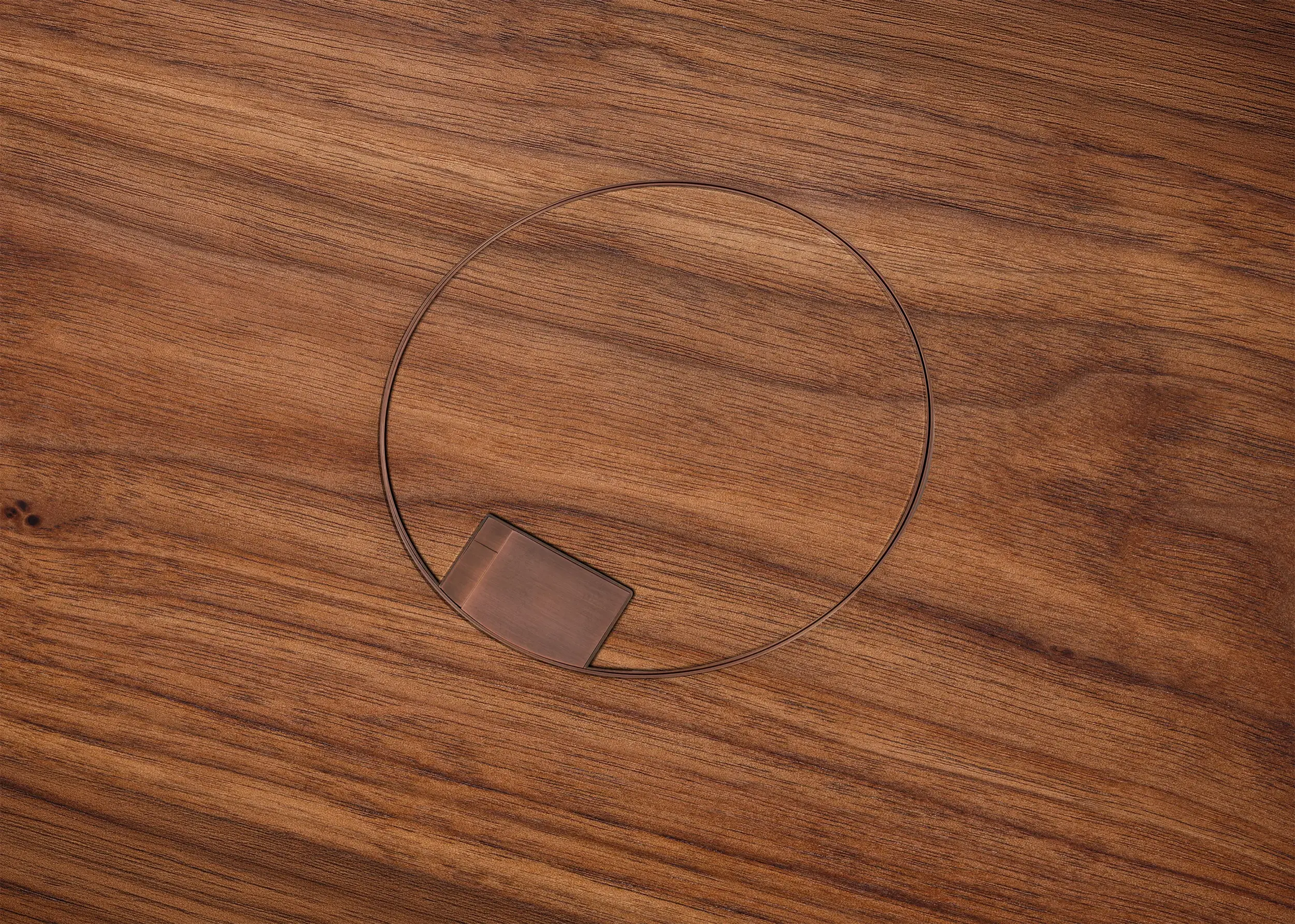

Minima Floorbox

Outlet Plates

Please select your desired number of outlet plates, if you are unsure of the number of outlet plates you require please Click here

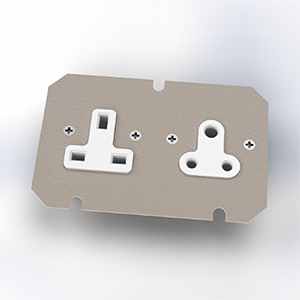

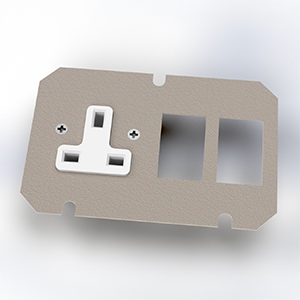

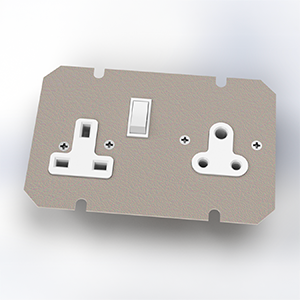

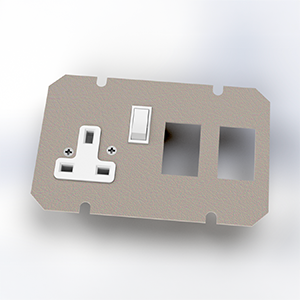

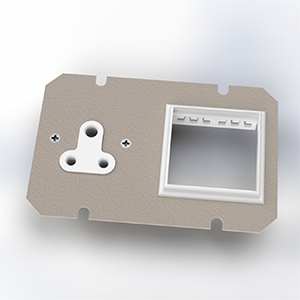

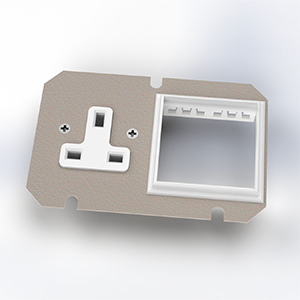

1x Single socket outlet plate

1x Twin socket

2x

3x

4x

Select one to continue

Looks good!

Please select your desired outlet plate configuration

Select a Shape

Choose your floor box shape. Our standard range includes rectangular, square, and round designs.

Rectangular

Square

Round

Bespoke

Enter your requirements:

Select one to continue

Looks good!

Please select a shape

Select Product

If you know which product type you want, please select type now (this also shows key product attributes before you click ‘Continue’). The configurator will then only show you options relating to that product.

Minima

700 Series

500 Series

2000 Series

Not Sure

Select one to continue

Looks good!

Please select a product

Select a Finish

Choose the perfect finish for your floor box. Our floor boxes can be finished to suit both modern and traditional aesthetics.

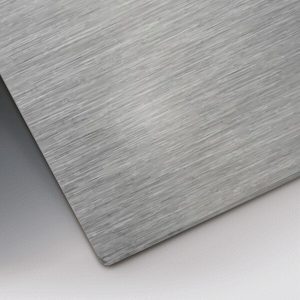

Satin Stainless Steel

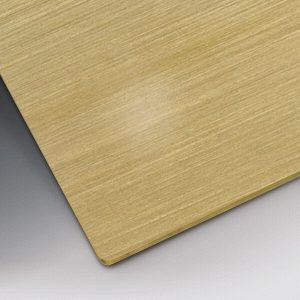

Satin Brass

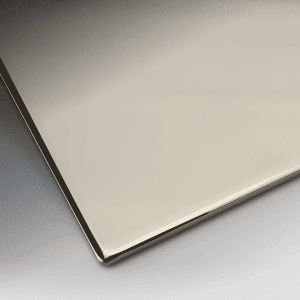

Mirror Polished Stainless Steel

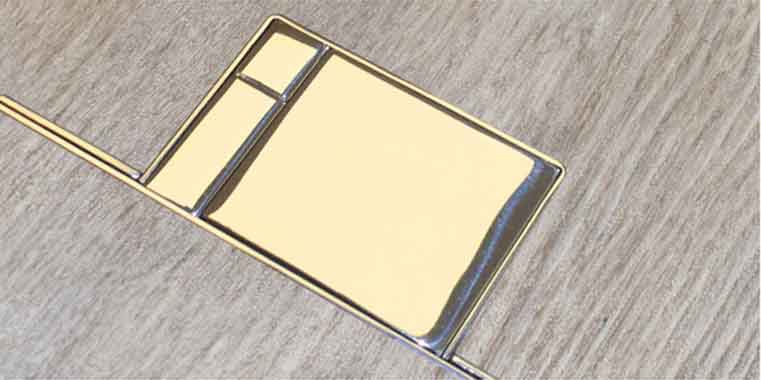

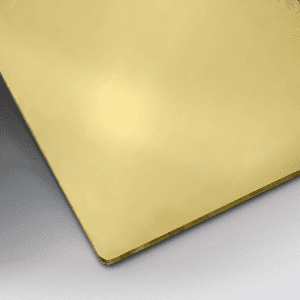

Mirror Polished Brass

Powder coated

Antique Brass

Antique Bronze

Jordan Bronze

Fire Retardant Plastic

Our beautiful bronze and brass finishes are hand-finished ‘living finishes’. This means they will age and alter over time and there will be some slight natural variation between similar products on the same project and in the way that they age

Powder coated in most RAL codes to match your décor

Looks good!

Please select a finish

Select a Base Depth

The base box provides space for plug-tops above the outlet plate and wiring below the outlet plate and you will need at least this depth in your sub-floor (excluding final floor depth)

55mm

65mm

85mm

120mm

Select one to continue

Looks good!

Please select a base depth

Standard or Retrofit

Please select below: either a Standard floor-box that will be installed BEFORE the final floor; or a Retrofit floor box for installation AFTER the final floor / WITH a poured finish

Standard

Retrofit

Select one to continue

Looks good!

Please select an option

Select a Feed Type

Please select below the option closest to how your cables will be fed into or connected to the floor box, i.e. type of ‘feed’

Conduit

Trunking - In Screed

Trunking - Flush Floor (500 & 2000 only)

Not Sure

Enter your requirements:

Select one to continue

Looks good!

Please select a feed type

Lid Recess Depth

This is the depth of final floor going into the lid and an allowance for adhesive as well (typically 1-4mm thick). Please note that poured finish is only available with a retrofit floor box. Please check the Lid, Trim and final floor covering guide for advice on lid recess depth

I know lid recess depth I can only estimate lid recess depth at this stage

Final floor depth (mm) Adhesive depth (mm)

If you do not know yet which final floor and adhesive will be fitted or their exact dimensions, please give your best estimate by choosing the most likely final floor type or depth option below:

Shallow Carpet tile / Vinyl (1mm-6mm deep)

Carpet (3mm-25mm deep)

Timber / Engineered wood (7mm-22mm deep)

Porcelain / stone tiles (9mm-25mm)

Poured finish (screed, concrete, terrazzo, resin)

Other

Enter your requirements:

Select one to continue

Looks good!

Please select an option

Select a Trim Style

How do you want to frame your floor box? Choose from trimless or trim with flange designs.

Trimless

Trim with flange

Select one to continue

Looks good!

Please select a trim style

Optional Extras

Select from the options below to add additional features to your floor box design.

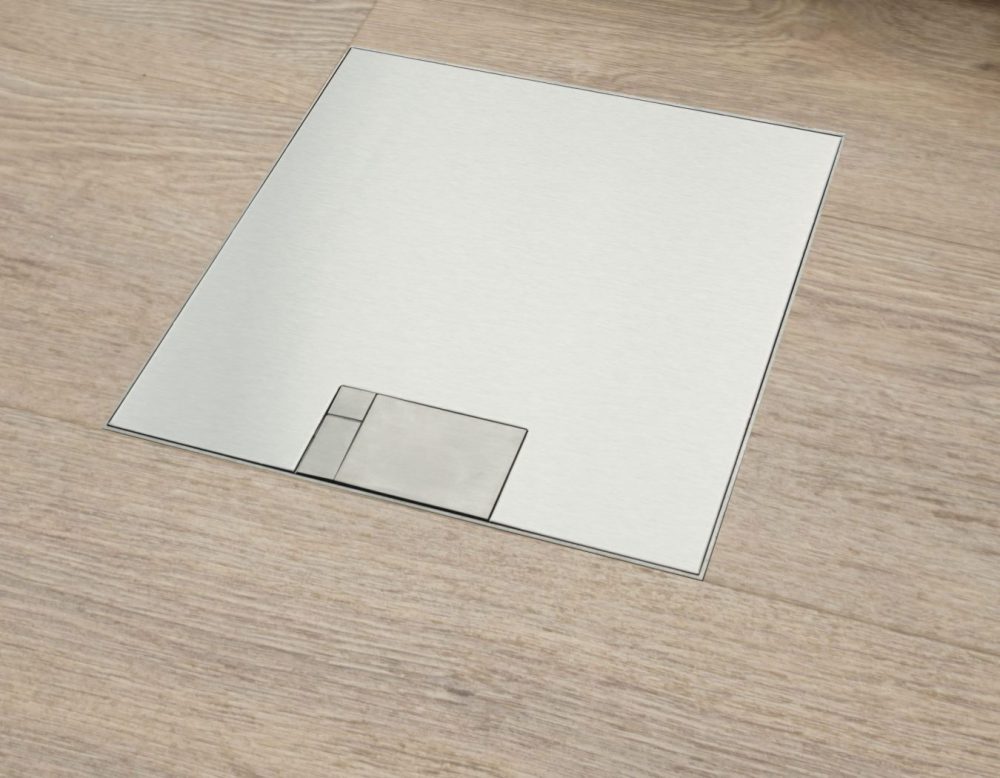

Flat Lid

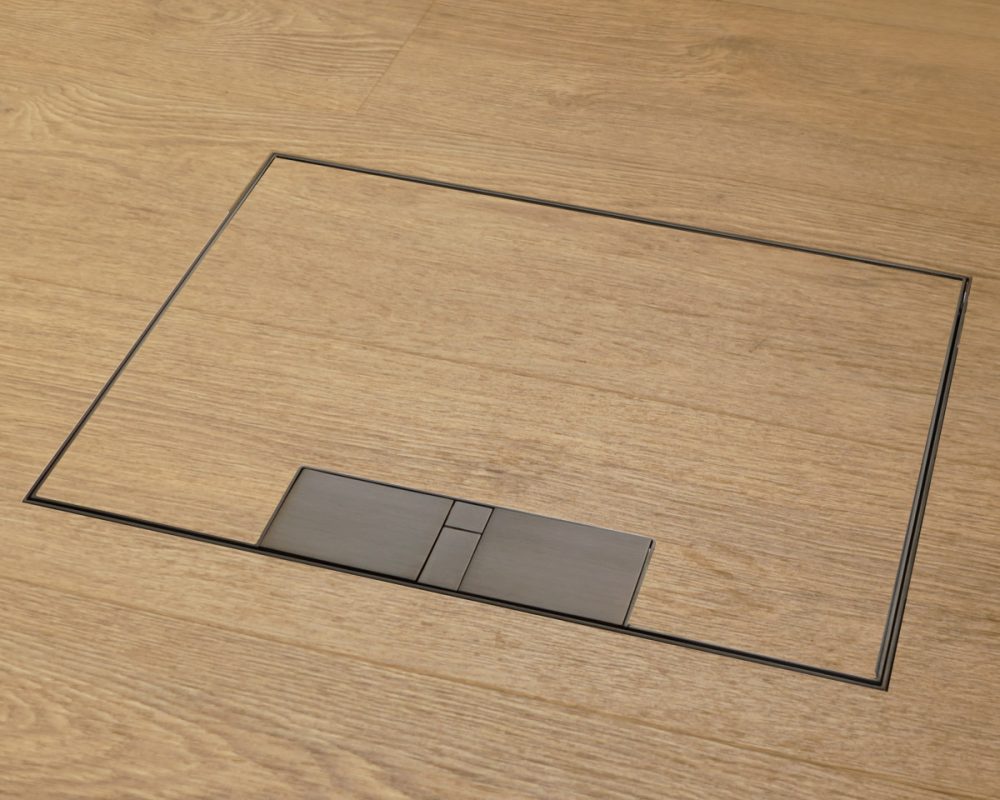

Extra Strength Lid

IP65 - when not in use

Brush Cable Exit

Mousehole Exit

Lock

Enter your requirements:

Enter Your Details
