Discreet, Plastic, Fire-retardant, Integrated

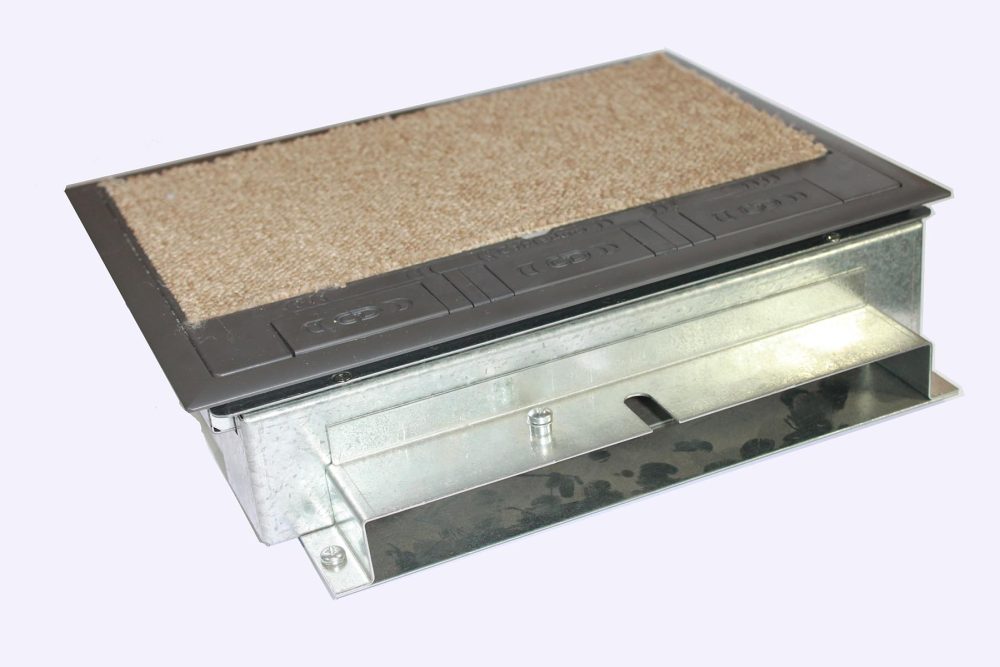

If your project includes carpet floors or offices, a more generic floor box is all that’s needed. Where style and discretion are secondary to functionality and protection, or if a project is time-sensitive and requires numerous floor boxes, the 2000 series floor box is the best option and will not compromise your safety or your interior aesthetic.
Floor box Chooser
Sizes
| Product Name | No. of outlet plates | Base box depth (A) | Lid-Frame size (D) |
| SBOX-2355C | 3 | 55mm | 300x217mm |
| SBOX-2355U3 | 3 | 55mm | 300x217mm |
| SBOX-2355FF | 3 | 55mm | 300x217mm |
| SBOX-2365C | 3 | 65mm | 300x217mm |
| SBOX-2365U3 | 3 | 65mm | 300x217mm |
| SBOX-2365FF | 3 | 65mm | 300x217mm |
| SBOX-2385C | 3 | 85mm | 300x217mm |
| SBOX-2385U3 | 3 | 85mm | 300x217mm |
| SBOX-2320C | 3 | 120mm | 300x217mm |
| SBOX-2455C | 4 | 55mm | 300x217mm |
| SBOX-2465C | 4 | 65mm | 300x217mm |
| SBOX-2465U3 | 4 | 65mm | 300x217mm |
| SBOX-2485C | 4 | 85mm | 300x217mm |
| SBOX-2485U3 | 4 | 85mm | 300x217mm |
| SBOX-2420C | 4 | 120mm | 300x217mm |
Drawings
2000 Floor Box
Outlet Plates
2x 13A switched
2x 13A switched with 2X USB-A
2x 13A with latching RCD
2x standard 1 gang apertures
2x Euromod 50x50 module
2x 5A unswitched
1x standard 2 gang aperture
3 x 13A unswitched
4 x LJ6C cut outs (22.4x36.4mm)
6 x LJ6C cut outs
4 x LJ6C cut outs angled
Blank Plate double
Finishes
Fire retardant plastic (RAL7015 slate grey)
Options
Lid & channel for flush floor trunking
Spigot for in screed trunking
flat lock
Downloads
Click on the boxes below to access our extensive range of downloadable resources. From brochures and floor box specifications to installation guides and conformity data sheets, all our downloads are completely free to all Cableduct customers.
If you’ve got a particular question for the experts at Cableduct, it’s highly likely that you’re not the first person to ask this. Have a read of our frequently asked questions to see if you can find the answer to the information that you require.
Can't see the answer you're looking for?
Call 020 8683 1126Complete our floor box chooser to help you choose the perfect floor box for your project. It is quick and easy to use and allows you to explore all the possible features and options of our floor boxes.
This depends on the number of power plug sockets and data/ AV points you want. These are mounted in metal outlet plates within the floor box and these decide what size and shape of floor box you can have. See also Downloads/Floor box chooser.
Standard finishes are stainless steel and satin brass but we also do beautiful bespoke finishes such as antique brass, antique bronze and jordan bronze to match your interior décor and other accessories. See also Finishes section in Product solutions
Yes. Cableduct specialises in making floor boxes in special shapes and sizes to suit our customers’ projects. See bespoke solutions in Product solutions.
Our base boxes can be 55mm, 65mm, 85mm or 120mm deep. 85mm and 120mm are more flexible and give most plug top and wiring space. 55mm and 65mm are shallow boxes and have limited plug top and wiring space. See also Downloads/Floor box chooser
Site conditions can vary but please see Downloads/Floor boxes for installation guides.
Follow the steps below to select the perfect product for your floor box requirements. You can easily select any product from our standard range or input more information for a bespoke designed option. When you have selected your floor box, ensure that you contact us to check whether you have considered all site requirements before we start to create your products. Before you start the Floor box Chooser, you can see Floor box type and attributes with key product attributes.
Please select your desired number of outlet plates, if you are unsure of the number of outlet plates you require please Click here
Choose your floor box shape. Our standard range includes rectangular, square, and round designs.
If you know which product type you want, please select type now (this also shows key product attributes before you click ‘Continue’). The configurator will then only show you options relating to that product.
Choose the perfect finish for your floor box. Our floor boxes can be finished to suit both modern and traditional aesthetics.
The base box provides space for plug-tops above the outlet plate and wiring below the outlet plate and you will need at least this depth in your sub-floor (excluding final floor depth)
Please select below: either a Standard floor-box that will be installed BEFORE the final floor; or a Retrofit floor box for installation AFTER the final floor / WITH a poured finish
Please select below the option closest to how your cables will be fed into or connected to the floor box, i.e. type of ‘feed’
This is the depth of final floor going into the lid and an allowance for adhesive as well (typically 1-4mm thick). Please note that poured finish is only available with a retrofit floor box. Please check the Lid, Trim and final floor covering guide for advice on lid recess depth
How do you want to frame your floor box? Choose from trimless or trim with flange designs.
Select from the options below to add additional features to your floor box design.
