Floor box Chooser

169mm round Floor box (Minima and 700 Series)

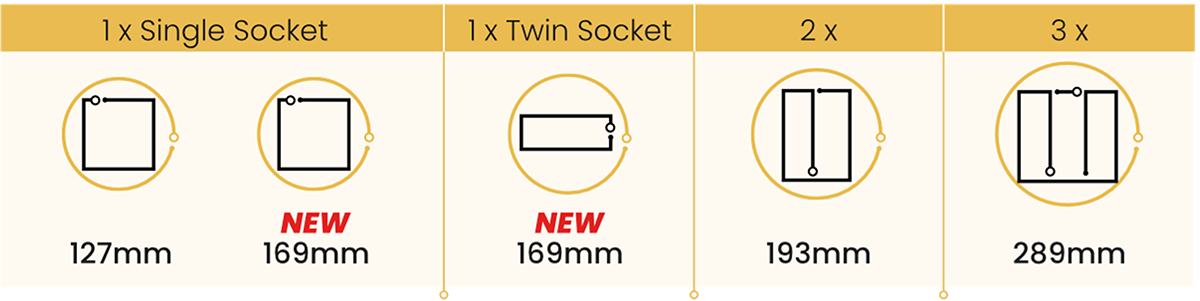

Floor Box chooser diagram
Small enough to be discreet, large enough to provide significant power or data to an office, hotel, shop or to be used in a variety of other sectors.

Bridges the gap in Cableduct’s round floor box range between the small 127mm diameter floor box (’cleaner’s grommet’) and the 2-compartment 193mm diameter floor box.

Flexible outlet plate configurations mean it can be small enough to accommodate 1 single socket or large enough to accommodate a twin socket or a single socket and data points as well.





Customer-focused floor box design

Minima Round floor box

With the advent of ever larger moulded plugs and ever longer plug flexes, the traditional 127mm diameter “cleaner's grommet” was struggling to cope as it was becoming more and more challenging to fit them into such a small floor box and then subsequently use the cleaner's grommet easily, or so our customers have told us.

Armed with this feedback, Cableduct designed a new 169mm diameter round floor box that is compact enough to remain discreet yet large enough to manage today’s larger plugs and provide additional power and/or data points.

You can choose to have it as either a Minima or 700 Series floor box and with whatever finish complements your interior design the best – standard finishes include satin brass and stainless steel; special finishes include antique bronze, jordan bronze, antique brass, powder coated, mirror-polished.

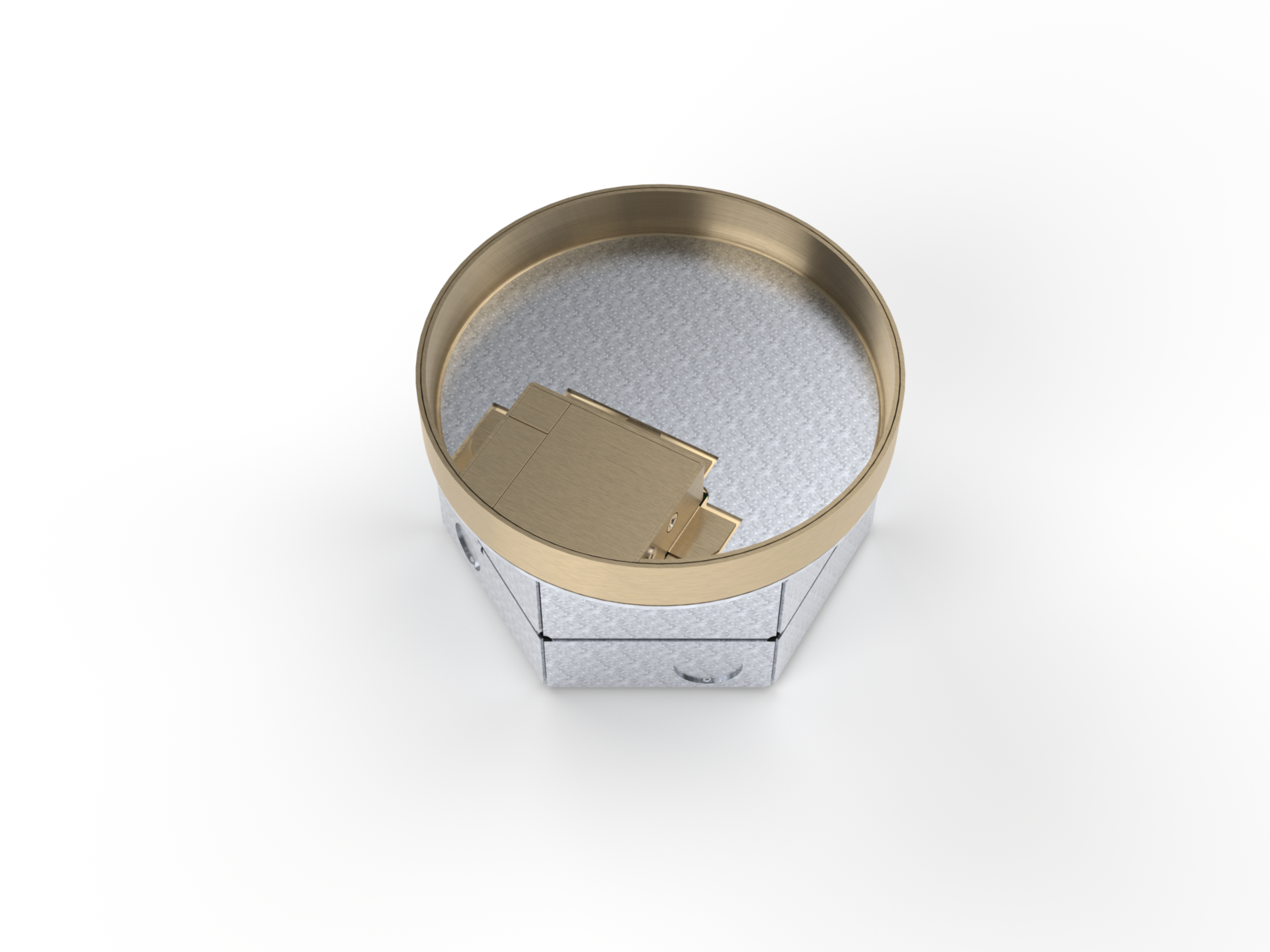

Minima/169mm round floor box

The perfect fit for your projects

At more than 10% smaller than the 193mm diameter round floor box, the new 169mm diameter size keeps it discreet while maximising its functionality and capacity for contractors, architects and designers alike.

As “new-size cleaner's grommet” or high-capacity double socket round floor box, it is now even easier to install and then use, while still blending in well with your interior design.

Timing of installation is flexible too in order to match your project timescales - the standard assembly can be installed before the floor covering is fitted and the retrofit assembly afterwards.

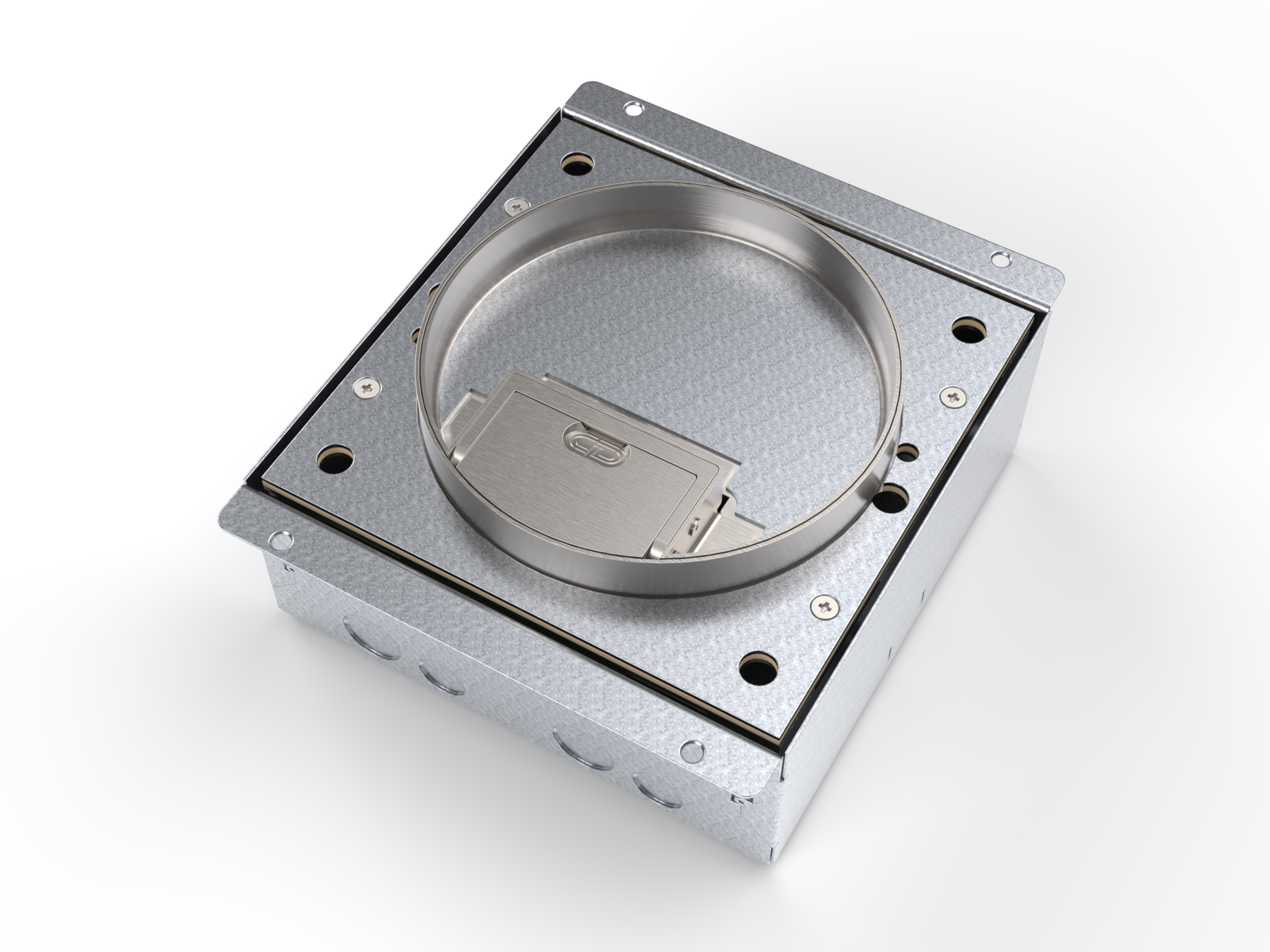

700 Series/169mm round floor box

Round floor boxes for compact applications

  • Discreet yet highly functional design
  • Large enough to provide significant power & data options
  • Easier to use and install than a small cleaner’s grommet
  • Not as big as 193mm round floor box but with similar functionality
Minima/169mm round floor box

Floor box Chooser

Follow the steps below to select the perfect product for your floor box requirements. You can easily select any product from our standard range or input more information for a bespoke designed option. When you have selected your floor box, ensure that you contact us to check whether you have considered all site requirements before we start to create your products. Before you start the Floor box Chooser, you can see Floor box type and attributes with key product attributes.

Outlet Plates

Please select your desired number of outlet plates, if you are unsure of the number of outlet plates you require please Click here

Select one to continue

Looks good!
Please select your desired outlet plate configuration

Select a Shape

Choose your floor box shape. Our standard range includes rectangular, square, and round designs.

Select one to continue

Looks good!
Please select a shape

Select Product

Select product type, the chooser will then only show you options relating to that product. Click here to see a comparison of our floor boxes.

Select one to continue

Looks good!
Please select a product

Select a Finish

Choose the perfect finish for your floor box. Our floor boxes can be finished to suit both modern and traditional aesthetics.

Looks good!
Please select a finish

Select a Base Depth

The base box provides space for plug-tops above the outlet plate and wiring below the outlet plate and you will need at least this depth in your sub-floor (excluding final floor depth)

Select one to continue

Looks good!
Please select a base depth

Standard or Retrofit

Please select below: either a Standard floor-box that will be installed BEFORE the final floor; or a Retrofit floor box for installation AFTER the final floor / WITH a poured finish

Select one to continue

Looks good!
Please select an option

Select a Feed Type

Please select below the option closest to how your cables will be fed into or connected to the floor box, i.e. type of ‘feed’

Select one to continue

Looks good!
Please select a feed type

Lid Recess Depth

This is the depth of final floor going into the lid and an allowance for adhesive as well (typically 1-4mm thick). Please note that poured finish is only available with a retrofit floor box. Please check the Lid, Trim and final floor covering guide for advice on lid recess depth

Select one to continue

Looks good!
Please select an option

Select a Trim Style

How do you want to frame your floor box? Choose from trimless or trim with flange designs.

Select one to continue

Looks good!
Please select a trim style

Optional Extras

Select from the options below to add additional features to your floor box design.
