Robust, Flexible, Discreet access to power and data at the right height.
Stylish skirting and dado trunking containment solutions for a wide variety of sectors and situations. Our skirting and dado trunking is available in a range of sizes, with 2 or 3 compartments, and with a variety of profiles. All lids are movable to allow the placement of service outlet parts wherever required. Stocked sizes are shown below. For bespoke sizes speak to our team for more information.
Contact Us
Dado
Stocked sizes are shown below. For bespoke sizes speak to our team for more information.
| Body (50) | Lid (51) | Depth x Height (mm) | # compartments |
| J2 | J2 - Square top | 40x150 | 2 |
| DD3 | DD3 - Square top | 50x150 | 3 |
| J3 | J3 - Square top | 40x200 | 2 |
| K2 | KD2 - Chamfered top | 40x200 | 3 |
| DD4 | DD4 - Square top | 50x200 | 3 |
| KK4 | KK4 - Chamfered top & bottom | 50x200 | 3 |
Dado Profile
J2
DD3
J3
K2/KD2
DD4
KK4

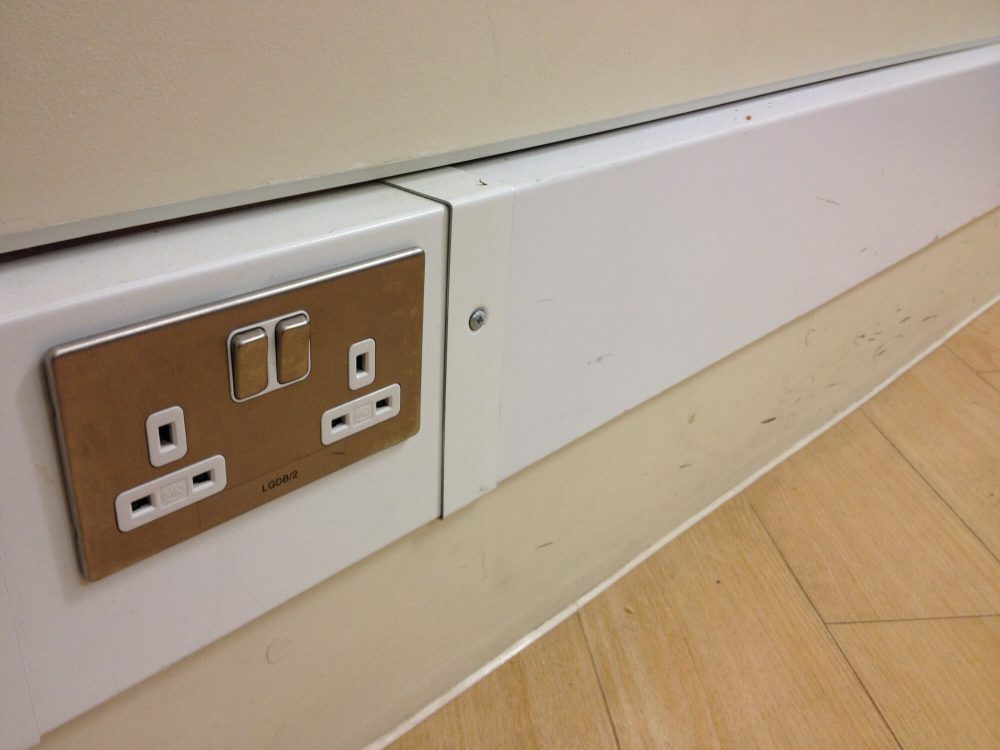

Skirting
Stocked sizes are shown below. For bespoke sizes speak to our team for more information.
| Body (50) | Lid (51) | Depth x Height (mm) | # compartments |
| J2 | J2 - Square top | 40x150 | 2 |
| DD3 | DD3 - Square top | 50x150 | 3 |
| K2 | KD2 - Chamfered top | 40x200 | 3 |
| DD4 | DD4 - Square top | 50x200 | 3 |
Skirting Profile
J2/H2
DD3/H3
K2
DD4/H4

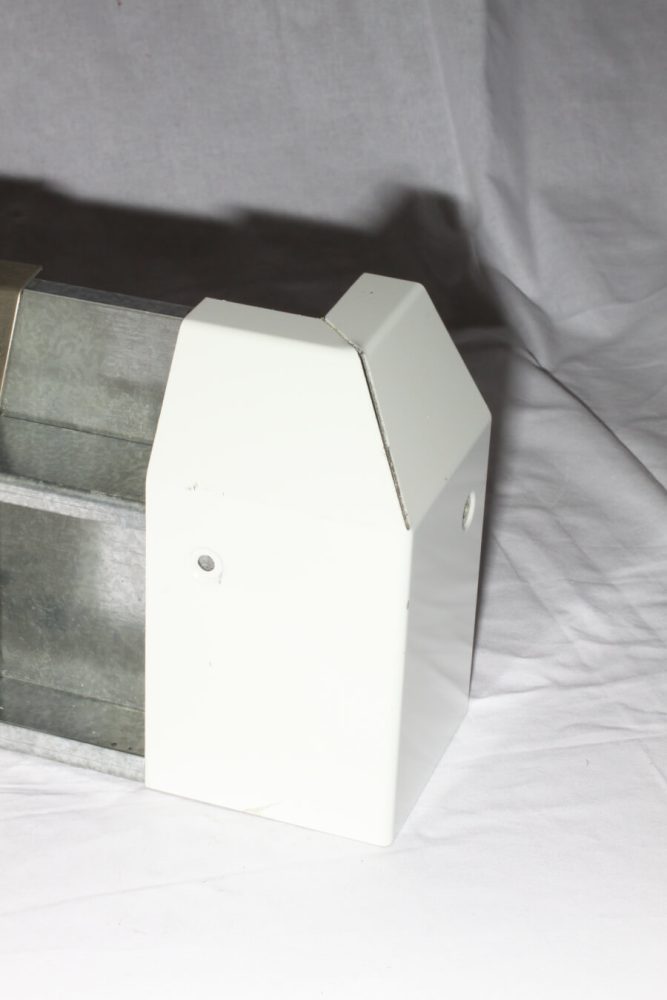

Bench
Stocked sizes are shown below. For bespoke sizes speak to our team for more information.
| Body (50): 2m lengths | Lid (51): 2m lengths | Depth & Height (mm) | # compartments |
| V1 | V1 - Chamfered | 100x100 | 1-2 |
Bench Profile
V1
Accessories
Browse our fully compatible accessories
| Trunking Accessory type (ref.) | Perimeter trunking ref. | Bench trunking ref. |
| Body | 50 | 150 |
| Lid | 51 | 51 |
| Body fixing plate (with body ref.50) | 56 | 156 |
| Lid fixing - back strap (pair with cover strap ref.58) | 57 | 157 |
| Lid fixing - cover strap (pair with back strap ref.57) | 58 | 158 |
| End cap | 59 | 159 |
| Copper earth strap | C41 | C41 |
| Internal bend (Body and Lid) | 60 | 162 |
| External bend (Body and Lid) | 61 | 163 |
| Base entry | 62 | n/a |
| Back entry | 63 | n/a |
| Cable / Conduit entry | 77 | n/a |
| Trunking Accessory type (ref.) | Perimeter trunking ref. | Bench trunking ref. |
| Flat bend - right hand (down) | 78 | n/a |
| Flat bend - right hand (up) | 79 | n/a |
| Flat bend - left hand (down) | 80 | n/a |
| Flat bend - left hand (up) | 81 | n/a |
| Outlet - 1 gang | 82 | 162 |
| Outlet - 1+2 gang (J3 only) | 52 | n/a |
| Outlet 2 gang | 53 | 164 |
| Panel mounted twin socket | 54 | V1-174 |
| Outlet screening saddle (eco J3) | 64 | V1-172 |
| 72 |
Body, lid & fixings
Copper earth strap
Internal & External bends
End Cap
Entry-base, back, cable
Flat Bends
Outlet - 1 gang
Outlet 1+2 and 2 gang
Panel mounted twin socket
Outlet screening saddle
Downloads
Click on the boxes below to access our extensive range of downloadable resources. From brochures and floor box specifications to installation guides and conformity data sheets, all our downloads are completely free to all Cableduct customers.
If you’ve got a particular question for the experts at Cableduct, it’s highly likely that you’re not the first person to ask this. Have a read of our frequently asked questions to see if you can find the answer to the information that you require.
Can't see the answer you're looking for?
Call 020 8683 1126Flush floor is level with the top of the screed and can contain floor boxes along the trunking run (usually 2000 Series floor boxes). Underfloor in-screed is buried in the screed.
The trunking acts as the base box of the floor box, you’re only putting a plug top and 6mm lid on the trunking. The cables run under the outlet plates.
A good start point is to see the relevant datasheet and installation guide and send us a “shopping list” of lengths/bends/end caps/tees that you want, with quantities.
You can install a floor box with underfloor trunking if the trunking is at least 55mm deep. The type of floor box will differ depending on the exact situation. Please ask our technical team for their advice
Skirting runs around the edge of the wall at floor level whereas dado does the same but at waist height. Options are available for square or chamfered top and bottom. Finish is galvanised steel, pre-painted white or stainless steel.
Our Trunking is supplied with enough fixings and accessories for standard installations. Projects can vary and so please discuss details of your project with our team. Fixings and installations information is available in Downloads/Trunking
